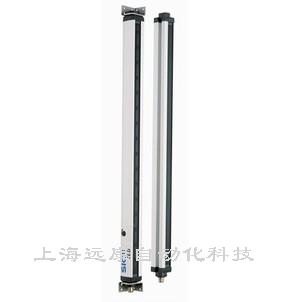

SICK光栅 ELG6-1380P521光栅 sick标准化光栅SICK ELG系列光栅
描述:

ELG短量程,检测距离=0...2m/光束距离30mm
分辨率10毫米起
发货包括固定架

ELG1-0150P571 1028333
ELG1-0150P533 1026809
ELG1-0150P531 1026741
ELG1-0100P533 1026808
ELG1-0100P531 1026807

ELG长量程,检测距离=0...12m/光束距离60mm
通过电位计进行灵敏度调节
工业标准输出

ELG3-0930R523 1026537
ELG3-0570P521 1025885
ELG3-1890P523 1026826
ELG3-1890R121 1026180
ELG3-0930R521 1025449
ELG3-0930R221 1026176
ELG3-0930R121 1025785
ELG3-0450R221 1024268
ELG3-2370P523 1026178
ELG3-2370P521 1025573
ELG3-2070P523 1025572
ELG3-2070P521 1025505
ELG3-1890P521 1025504
ELG3-1890N521 1025621
ELG3-1650P521 1025503
ELG3-1650N521 1025620
ELG3-1410P523 1026179
ELG3-1410P521 1025502
ELG3-1410N521 1025618
ELG3-1170P521 1025579
ELG3-1170N521 1025617
ELG3-1050P521 1025570
ELG3-0930P521 1025511
ELG3-0930N521 1025616
ELG3-0810P523 1026177
ELG3-0810P521 1025577
ELG3-0690P521 1025568
ELG3-0690N521 1025615
ELG3-0450P521 1025440
ELG3-0450N521 1025614
ELG3-0210P521 1025574
ELG3-0210N521 1025613
ELG3-0150P521 1026475
ELG3-0930P511 1025492
ELG3-0690P511 1025499
ELG3-0570P511 1025501
ELG3-0450P511 1025490
ELG3-0330P513 1025576
ELG3-0330P511 1025575
ELG3-0210P513 1025438
ELG3-0210P511 1025510
ELG3-0150P513 1025578
ELG3-0090P513 1025443

ELG长量程,检测距离=0...12m/光束距离60mm




ELG6-1860R523 1026458
ELG6-2460R521 1026183
ELG6-1860R521 1026182
ELG6-1380R523 1025451
ELG6-0900R523 1025453
ELG6-0900R521 1026181
ELG6-2460P523 1024293
ELG6-2340P521 1025596
ELG6-2040P523 1025594
ELG6-1860P523 1025593
ELG6-1860P521 1025589
ELG6-1380P523 1025588
ELG6-1380P521 1025587
ELG6-1080P521 1025586
ELG6-0900P521 1025447

PLG3-420F431 1029132
PLG3-360F431 1029131
PLG3-270F431 1029130
PLG3-210F431 1028548
PLG3-120F431 1028953



Standard automation light grids
ELG

Model Name ELG6-1380P521
Part No. 1025587


At a glance

  Up to 128 beams
  Different beam resolutions 30 mm and 60 mm
  High functional reserve (gain) for ranges up to 12 m
  Potentiometer for sensitivity setting
  Ambient light up to 150,000 lx
  Tough, aluminum housing
  PNP/NPN, relay output and a test input
  Optical synchronization

Your benefits

  Insensitive to ambient light when exposed to direct sunlight, strobe lights, and highly reflective objects, eliminating false trips
  High functional reserve (excess gain) ensures operation even if it gets dirty, dusty, or misaligned, reducing maintenance costs
  Efficient and effective way to combine multiple sensors in one housing with one connector
  Simple commissioning thanks to a larger optical aperture angle and manual fine adjustment option
  Optical synchronization enables quick installation and cost-effective connection
  The sensitivity adjustment can be used to detect or ignore translucent materials to reduce production problems









Features
Technology: Transmitter / receiver
Task: Switching light grid
Beam separation: 60 mm
Number of beams: 24
Detection height: 1,380 mm




Performance
Working range: 12 m
Maximum scanning range: 17 m
Minimal scanning range: >=0 mm
Response time parallel beam: >=100 ms1)
1)With resistive load



Interfaces
Switching output: 1 x PNP Q & Q invertiert
Connection type: Connector M12, 4-pin
Test input: PNP




Mechanics/electronics
Wave length: 880 nm
Supply voltage VS DC 15 V 30 V1)
Power consumption sender > 100 mA2)
Power consumption receiver > 100 mA3)
Ripple: > 10 Vpp
Output current Imax.: 100 mA
Output load capacitive: 100 µF
Output load inductive: 1 H
Initialization time: 1 s
Dimensions (W x H x D): 34 mm x 1,456 mm x 29 mm
Housing material: Aluminum
Indication: LED
Synchronization: optical
Enclosure rating: IP 65
Circuit protection: Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Weight: 3,700 g
Front screen: PMMA
Pulse rate: 250 kHz
1)2)3)Typical value



Ambient data
Protection class: III
EMC: EN 60947-5-2
Ambient temperature: Operation: -25 ... 55 °C
Storage: -40 ... 70 °C
Ambient light safety indirect: ≤ 150,000 klx1)
Vibration resistance: 5 g, 10 Hz ... 55 Hz, IEC 68-2-6
Shock resistance: 10 g / IEC 68-2-29 / 16 ms
1)Sunlight
